Capturing live UI compositions with Claude Code

---
name: doc-screenshots
description: Capture documentation screenshots from the live running application using the official Chrome Claude extension. Use when asked to capture, take, or create screenshots for documentation.
---

# Documentation Screenshot Capture

Capture screenshots directly from the live running application using the official Chrome Claude extension.

## Workflow

1. **Navigate** to the page containing the element
2. **Trigger UI state** if needed - click buttons to open dialogs, expand menus
3. **Inject JavaScript** to:
   - **HIDE ALL OTHER ELEMENTS** on the page (set `document.body` children to `display: none`)
   - Clone the target element into a wrapper with consistent styling
   - Append wrapper to body (it will be the only visible element)
4. **Take screenshot** of the wrapper element
5. **Get dimensions** (`sips -g pixelWidth -g pixelHeight`)
6. **Update MDX** with Image component using retina dimensions (pixel size / 2)

## Screenshot Styling

The wrapper applies consistent styling:

- **White background** - Clean, neutral backdrop
- **20px padding** - Breathing room around the element
- **No border radius** - Sharp corners on the container

### When to Apply shadow-md

Only apply `shadow-md` to **discrete single elements**:
- Dialogs
- Cards
- Tables
- Dropdown menus

**Do NOT add shadow** to compositions of multiple elements or full page sections.

## Menus and Dropdowns

When capturing menus or dropdowns, **include the trigger element** (button, avatar, etc.) so the context is clear.

## Data Tables

When capturing data tables:
- **Keep the original table structure** - Do not create your own sub-tables
- **Remove rows** to show only 2-3 example rows

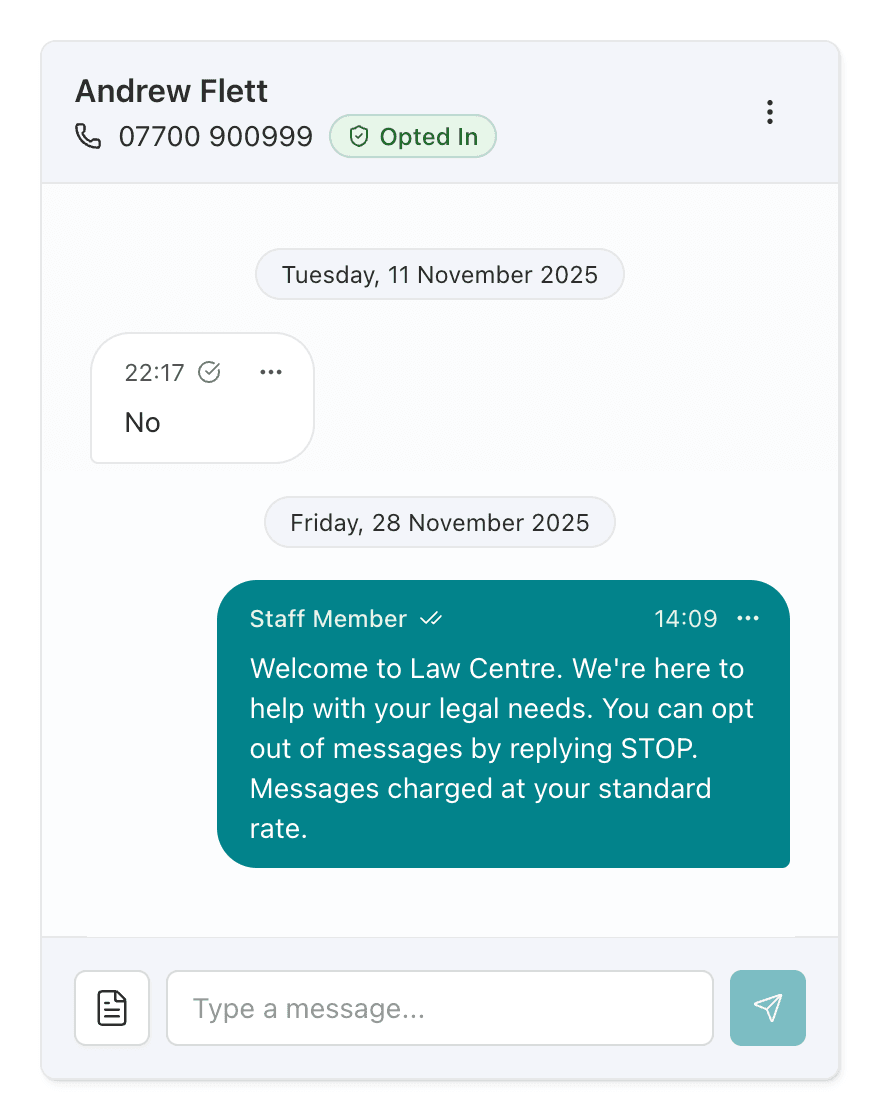

## Personal Information Replacement

Before capturing, replace any personal information in the cloned element:

| Original | Replacement |
|----------|-------------|
| Any person's name | `Andrew Flett` |
| Any email address | `andrew@flett.cc` |
| Any phone number | `07700 900999` |

Search the entire cloned element for names. They appear in table cells, avatar labels, assignee fields, comment authors, and timestamps.

## Post-Capture

**Do NOT crop or modify screenshots** - save them raw from the Chrome extension.

## JavaScript Template

\`\`\`javascript
() => {
  // Remove any existing wrapper
  const existing = document.getElementById('screenshot-wrapper');
  if (existing) existing.remove();

  // Find the target element (adjust selector as needed)
  const element = document.querySelector('[role="dialog"]');
  if (!element) return { error: 'Element not found' };

  // CRITICAL: Hide ALL other elements on the page first
  Array.from(document.body.children).forEach(child => {
    child.style.display = 'none';
  });

  // Create wrapper with screenshot styling
  const wrapper = document.createElement('div');
  wrapper.id = 'screenshot-wrapper';
  wrapper.setAttribute('role', 'region');
  wrapper.setAttribute('aria-label', 'Screenshot target');
  wrapper.style.cssText = \`
    position: fixed;
    top: 50%;
    left: 50%;
    transform: translate(-50%, -50%);
    padding: 20px;
    background: white;
    z-index: 999999;
    border-radius: 0;
    display: block !important;
  \`;

  // Clone element into wrapper
  const clone = element.cloneNode(true);
  clone.style.position = 'relative';
  clone.style.margin = '0';

  // Only add shadow-md to discrete elements (dialogs, cards, tables)
  clone.className = clone.className
    .replace(/shadow-\\w+/g, '')
    .replace(/\\s+/g, ' ')
    .trim();
  clone.classList.add('shadow-md');

  let html = clone.innerHTML;
  clone.innerHTML = html;

  wrapper.appendChild(clone);
  document.body.appendChild(wrapper);

  return { success: true };
}
\`\`\`


Width and height = pixel dimensions ÷ 2 (for retina).

## Screenshot Naming

Use descriptive kebab-case: `invite-user-dialog.png`, `template-form.png`

## Requirements

- Dev server running at `localhost:3000` if not, ask the user to start it
- Log in with appropriate permissions before capturing
